LK-1A/1B

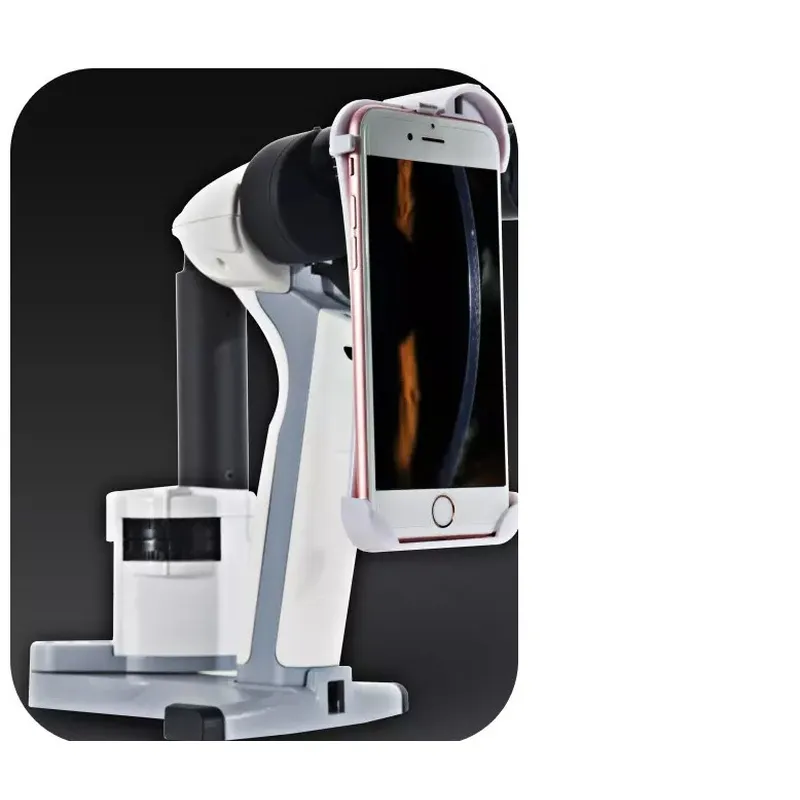

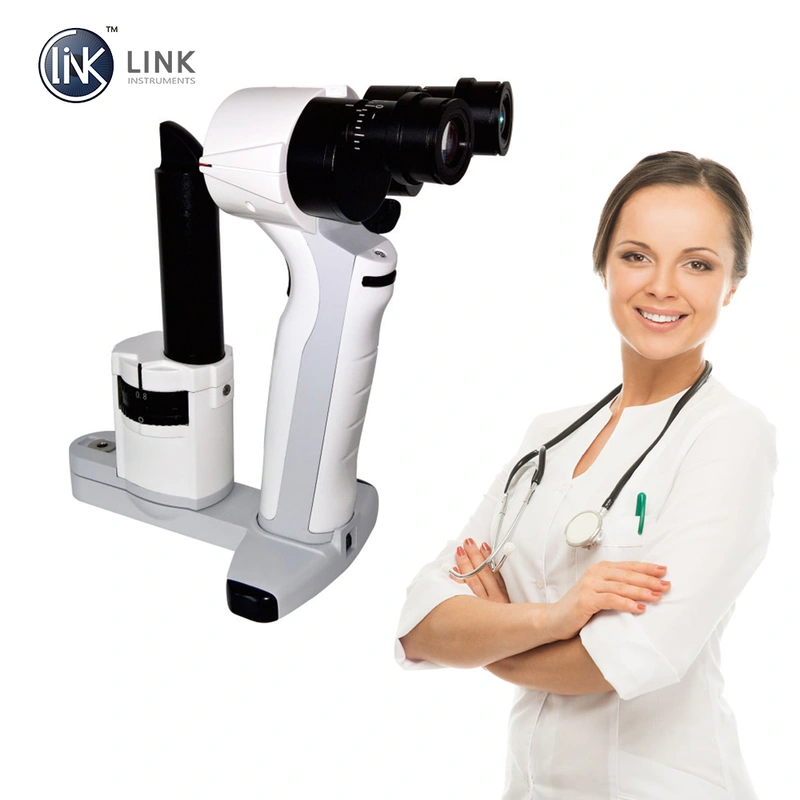

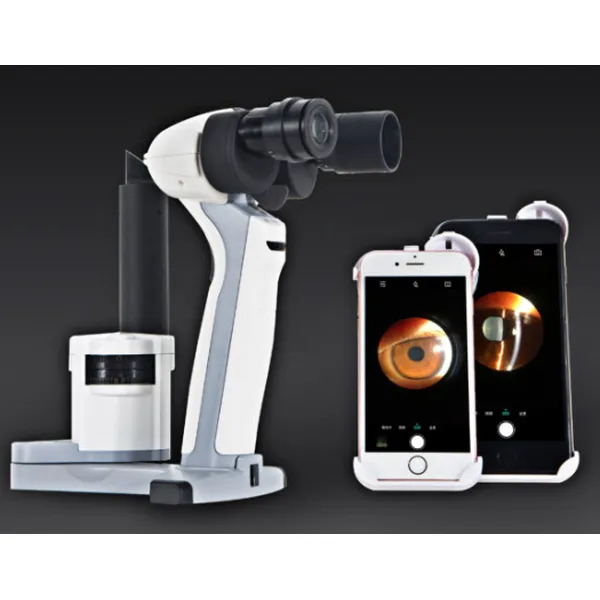

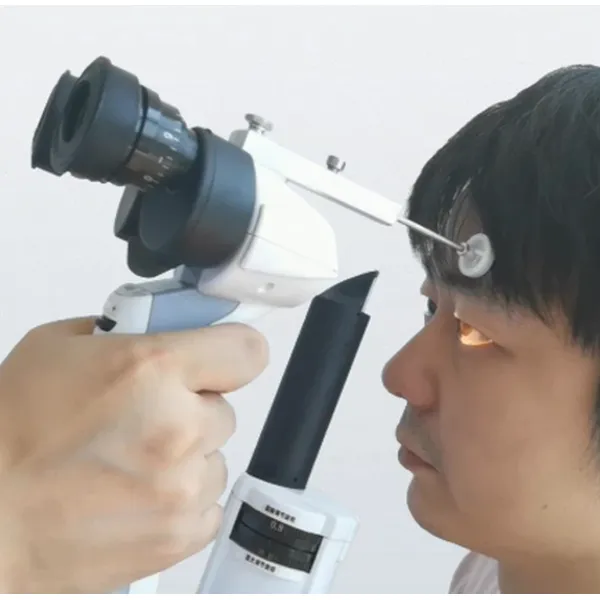

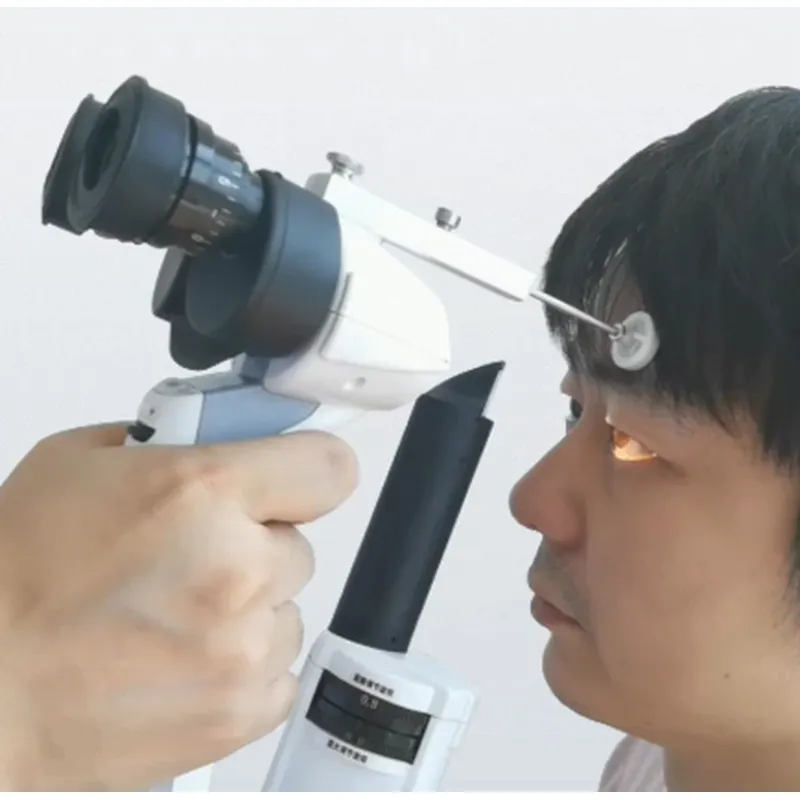

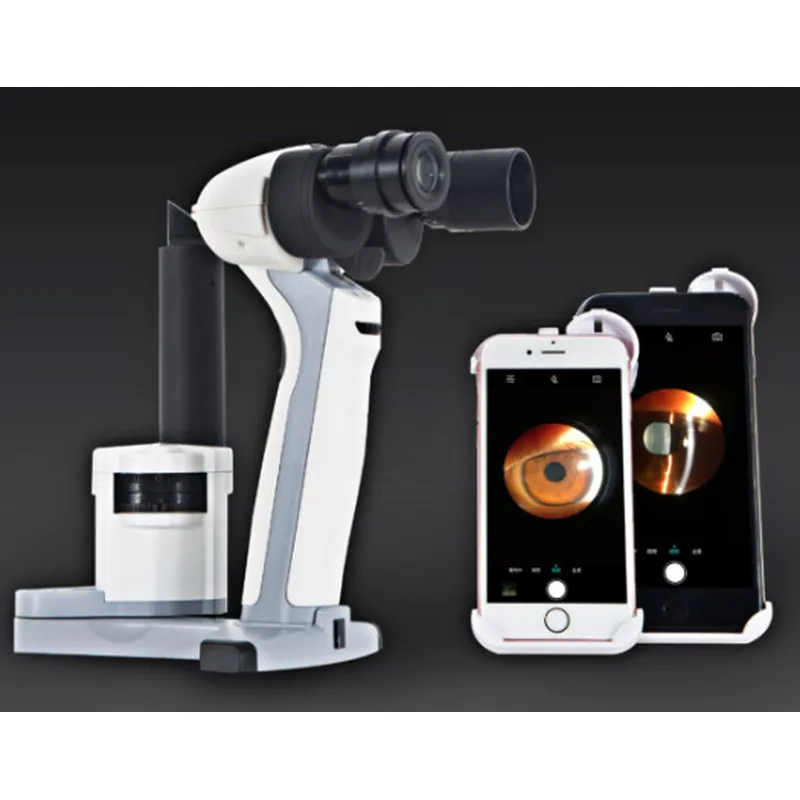

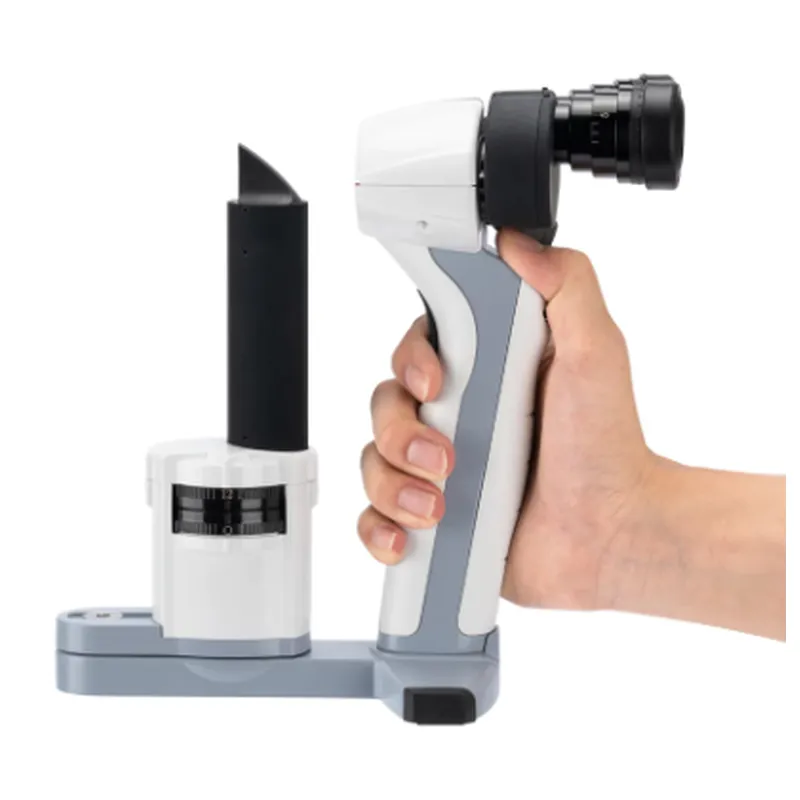

Handheld slit lamp is a portable ophthalmic equipment for eye exam. It has 10x magnification for ophthalmologist to have a clear view on iris, cornea, and lens. This slit lamp features LED illumination light, max 12mm slit width, stepless light brightness adjustment, and it provides 4 filters (heat-absorption, color temperature compensation, red free,cobalt blue) to meet different exam requirements.
Features:
* Advanced optics, 10x magnification
* Controllable illumination from maximum to zero
* Enhanced portability during examination
| Model | LK-1A | LK-1B | |
| Microscope | Type | Binocular Handheld Slit Lamp | |
| Eyepiece | Convergence binoculars, 13⁰ degree | ||
| Magnification | 10X | 10X, 16X | |
| Working Distance | 80mm | ||
| Pupil Distance | 45mm~ 78mm | ||
| Diopter Compensation | -8D~ 8D | ||
| Illumination | Slit Width | 0.15mm, 0.5mm, 0.8mm, 1.6mm,ф 12mrm, 1X1mm Block | |
| Slit Length | 12mm | ||
| Slit Angle | Horizontal 160 | ||
| Filter | Heat-Absorption, Color Temperature Compensation, Red Free,Cobalt blue | ||
| Light Source | White LED | ||
| Maximum Illumination | > 50000Lux | ||
| Power Source | LED Working Voltage | DC7 4V, 950mAh | |
| Battery | Li-ion battery 7.4V/950mAh, continuous working time > 3 hoursafter fully charged | ||
