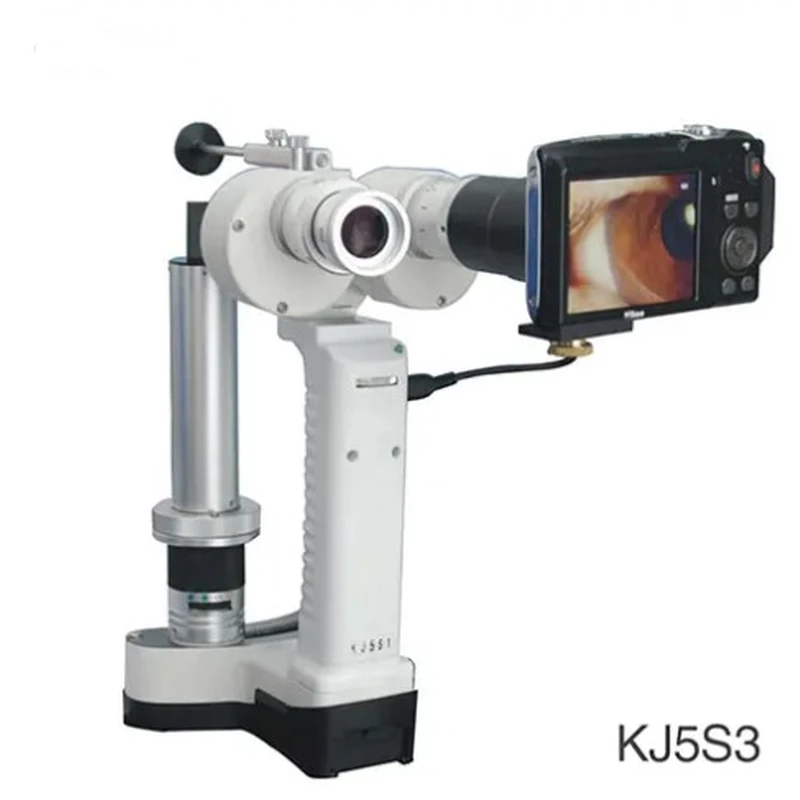

KJ5S3 is an ophthalmic portable slit lamp microscope with digital camera for eye exam. It features two step magnifications (10X, 16X), 4 filters (heat-absorption, grey, red free, cobalt blue), ±7D diopters for doctors, LED illumination for patient comfort, high definition imaging, and easy to operate.
Technical Specifications:
| Microscope Type | Converging microscope |
| Objective Magnification | 1X |
| Eyepiece Magnifications | 10X, 16X |
| Diopter Compensation | ±7D |
| Pupil Distance | 48~70mm |
| Working Distance | 80mm |
| Slit Width | 0~10mm continuously adjustable |
| Diamater of Light Spot | 1mm, 3mm, 5mm, 10mm |
| Filter | Heat-absorption, Grey, Red free, Cobalt blue |
| Slit Angle | Horizontal±30° |
| Light Source | White LED |
| Power | 7.2V 750Ah Li Battery,Rechargeable |
| Working Time | 5-6hours |
| Packing Volume | 40cm * 20cm * 23cm |
| Net Weight | 750g |
| Gross Weight | 3000g |
