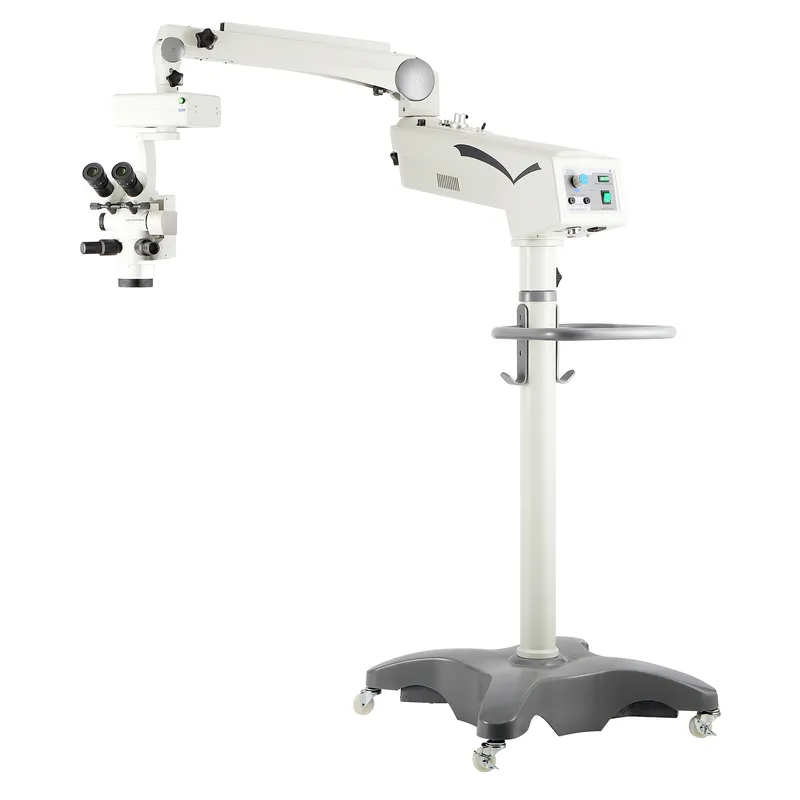

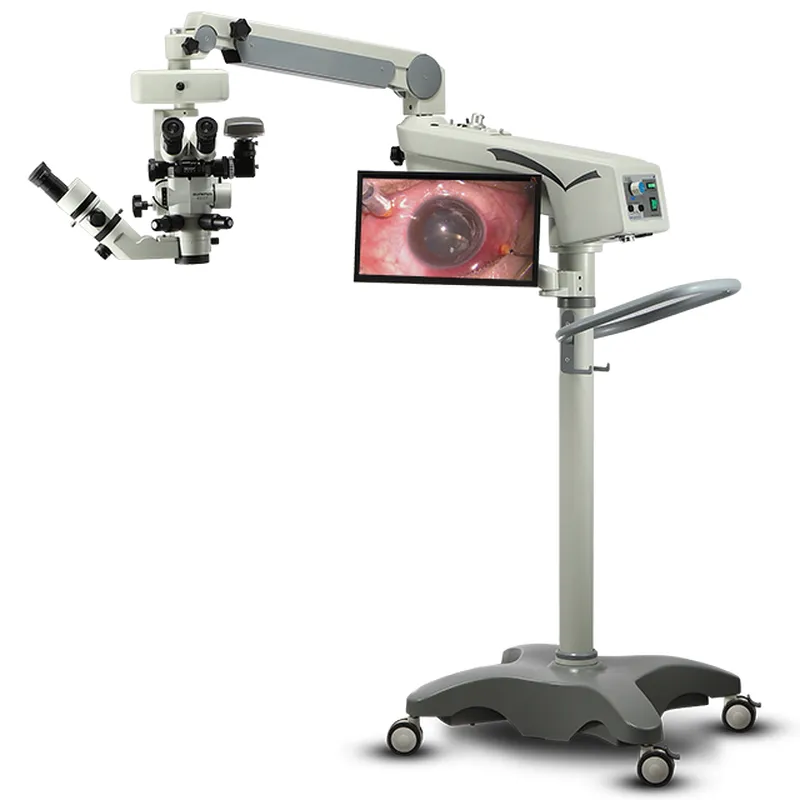

eye operating microscope Hospital Ophthalmic Equipment operation microscope optical microscope
eye operating microscope Hospital Ophthalmic Equipment operation microscope optical microscope
  • eye operating microscope Hospital Ophthalmic Equipment operation microscope optical microscope
  • eye operating microscope Hospital Ophthalmic Equipment operation microscope optical microscope

eye operating microscope Hospital Ophthalmic Equipment operation microscope optical microscope

sku:1000 set/month

china supplier ophthalmic microscope operation microscope ophthalmology


30-degree double eyepiece, the main knife is more comfortable to operate; Imported motor zoom device, low noise, good control performance; X-Y fine tuning, imported low noise servo motor, stable and reliable; New appearance beautification design, humanized operation, convenient installation and debugging; Coaxial lighting, imported bulb, imported material light guide fiber, strong brightness and good penetrability; Japanese OLYMPUS original main mirror, 65mm wide field of vision, strong stereoscopic impression, good depth of field; And optical path assistant mirror, 4X, 7X convenient assistant observation; Extended functions: inverted rear segment mirror and non-contact wide-angle mirror of surgical video recording system.

Description

Microscope
Item
Specification
10X wide field10X wide field Eyepiece
10X wide field
Observation Angle
30°
Pupil distance
50-76mm
Diopter Adjustment
±5D(binocular)
X-Y speed
2.2mm/sec foot control
Magnification
4X- 20X continually motorized zoom
Field of View
8mm-50mm
Working Distance
≥170mm
Focus Adjustment
±20mm foot control
Assistant Microscope
Stereo Coaxial
Magnification
4X、7X
IIIumination
Light Source
15V/150W Halogen Lamp or LED Light
Intensity
≥80,000Lux
Base
Length of Arm Extended
1200mm
Upper and Lower Adjustment Range
±150mm
Base Size
560mmx560mm
Foot Switch
X-Y Focus/ Motorized Focus and Zoom


1.Independent coaxial stereo assiatant microscope

2.Aspheric designed condenser lens for better red reflex 3.Better red reflection, safer surgery
4.. Multi-function foot switch for easy control5.Halogen Lamp or LED Light
